CNC lathe Controller: 1)Scanning Function & Auto Tool Setter/Probe 2)High anti-jamming switch power(100V-240VAC 50Hz/60Hz- >24VDC) 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

Lathe Automatic CNC Controller For 3 Axis

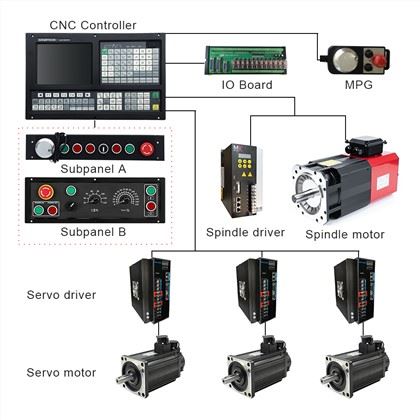

CNC lathe Controller: 1)Scanning Function & Auto Tool Setter/Probe 2)High anti-jamming switch power(100V-240VAC 50Hz/60Hz- >24VDC) 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch
Send Inquiry



1000MC-3

Number of control axes

3 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Handwheel functions

Panel type, plug-in hand-held

Acceleration and deceleration control

Linear acceleration and deceleration, the number of additions and subtractions

Support Built-in standard PLC program,and can be customized edited according to customer's askes
FunctionATC+PLC and macro function
Manual continuousOne axis or simultaneous multi-axis
User macro programYes


GH controller uses a high-performance dual-core CPU and ultra-large-scale programmable gate array integrated circuit chip FPGA to form the control core to realize μ-level precision motion control. The brand-new controller panel, equipped with an 800*600 dot matrix 8.4-inch true color LCD screen, coupled with a newly designed display interface, has been highly praised by many customers.


PLC functions:

1）45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)

2）Support PLC warning and PLC alarm.
3）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.


Spindle axis functions:

1) Two channels 0V ~ 10V analog voltage output, support double spindle control
2) Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
3) Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)


Tool functions:
1)Tool length compensation
2)Tool point radius compensation (C type)


Application : CNC Lathe & Turning Machinery and specially automatic equipment



1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

Q:When can you receive our order?

A: All goods will be produced well within 5 to 7 workdays, except the customized products.


Q2.What is the control mode for feeding Axes?

A: Our Normal CNC support Pulse+Direction signals for feeding axes drivers;

    Our Modbus CNC supports EtherCAT/Powerlink Modbus for feeding axes drivers.


Q3.What is the control mode for spindle axes?

A: There are dual analog voltage outputs(0~10V) for speed control of the spindle axis. Our Modbus CNC also supports a Pulse speed spindle, and also can use pulse to control the speed of the spindle servo system.


Q4.Does your CNC support ATC function?

A: Yes, our CNC lathe system can support most the turret, like the Electric turret, servo turret, counting turret, etc; We can edit special macro program & plc for special turrets also; And our CNC milling system supports Linear type, umbrella type, arm type, and turret type tool magazines.


Q5.Does your CNC support booting logo exchange?

A: Yes, no problem.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!
