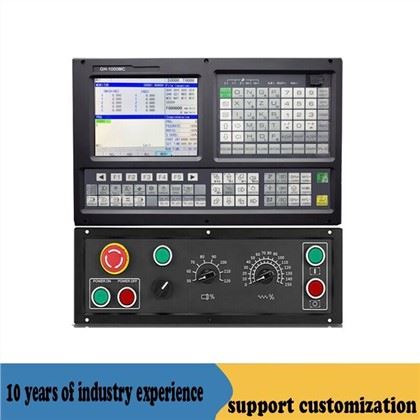

GH1000MC-4 is 4 axis milling CNC controller<br /> 1)Threading Cycle: Following Mode/Interpolate Mode <br /> 2)Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)<br /> 3)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes<br />

​ 4 axis cnc Milling controller


GH1000MC-4 is 4 axis milling CNC controller
1)Threading Cycle: Following Mode/Interpolate Mode
2)Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
3)Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes
Send Inquiry

AS GSK CNC Controller Panel 4 Axis cnc Milling Controller with ATC+PLC Support Auto Tool Sette for CNC Drilling controller control system kit

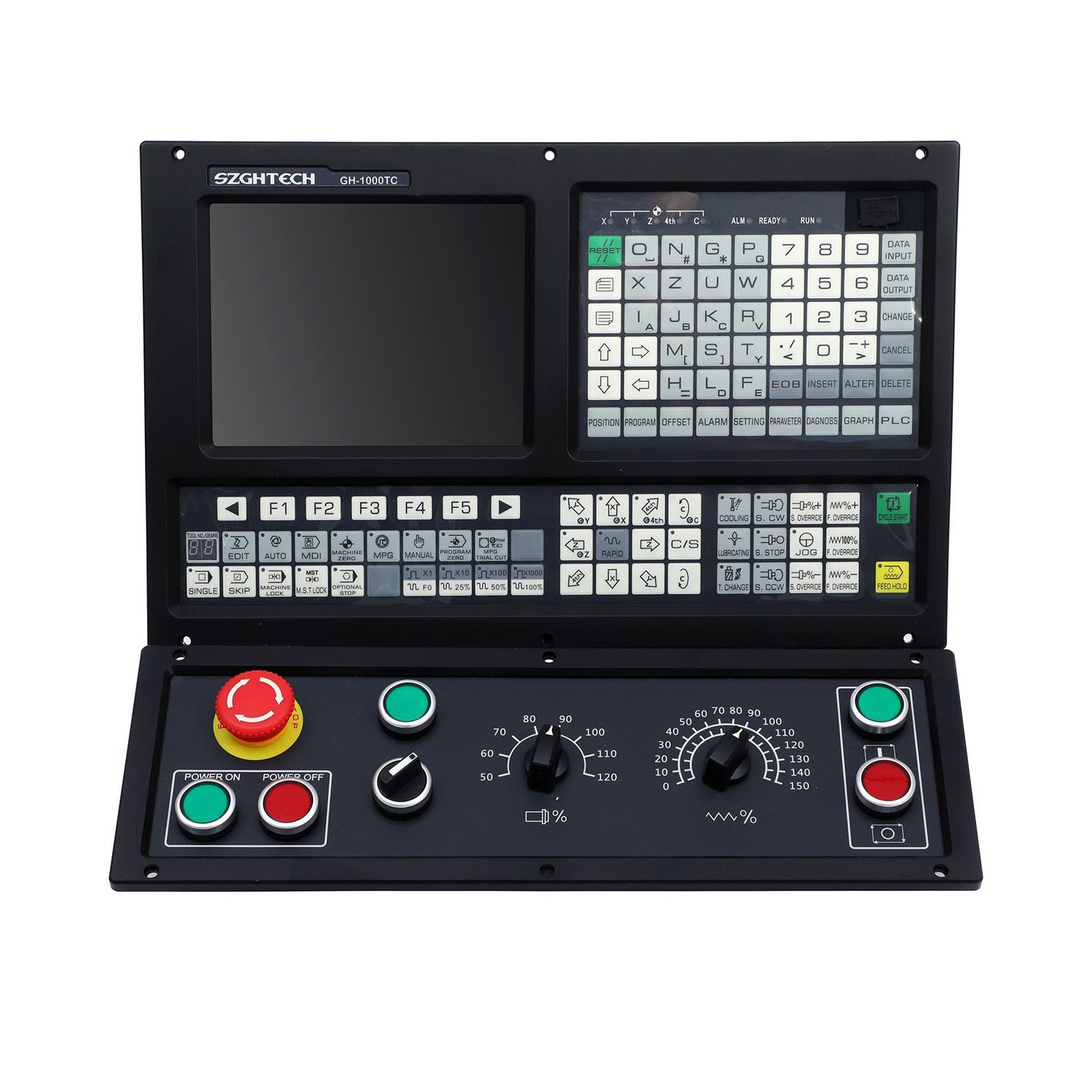

0X9A5502

Number of control axes

4 axes (X, Z, Y ,A)

Minimum programming

0.001mm

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Manual continuous

One axis or simultaneous multi-axis

Interpolation method

Straight line, arc, thread interpolation

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Handwheel functions

Panel type, plug-in hand-held

Screen saver function

Screen saver function

Communication function

RS232, U disk interface



Application: CNC Milling & Drilling Machinery and specially automatic equipment


Features :

1. Open LCD interface planning to meet the customized needs of machinery manufacturers

2. High-definition LCD liquid crystal display, the lathe system has a dialogue-type calibration function, and the interface is more friendly

3. The resolution can be set to 7 digits, with a fully closed loop control structure, and higher control accuracy

4. With rich tool compensation function

5. With mechanical backlash compensation and screw pitch error compensation functions

6. Unique program handwheel test function, anti-collision machine, safer operation

7. With program simulation, single block, skip section and program restart function, the function is more powerful


QQ20210702093413

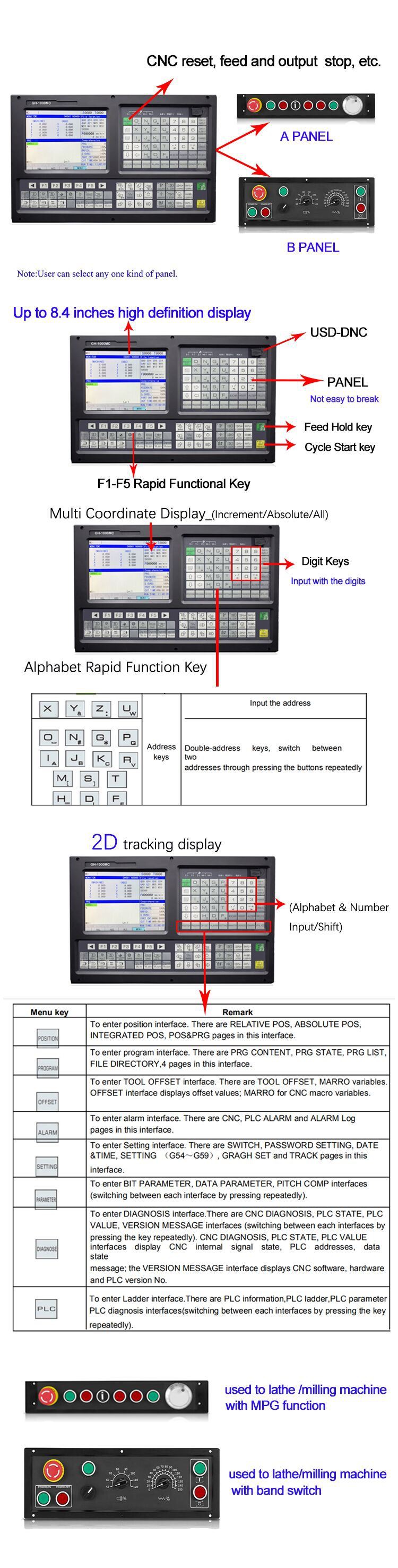

QQ20210701150818


CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

H6aada374ce7d45d883021e74cc0b9923f


FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer cnc system products. And we trade our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: How many different types of products your company manufactures?

A: Now we have more than 300 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.



Our Service

1.Small order available

2.Quickly response

3.More safe and fast transport

4.OEM design for all customers

If you have any other question about our 4 axis cnc Milling controller , pls feel free to contact us as below
