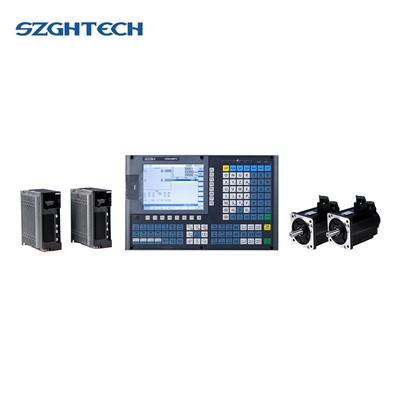

SZGH-880Tc New launch CNC Controller Kit Up to 16-axis control For Lathe, Routers, High precision: 17bits/23-bit absolute encoder support is 3 Axis(X Z) economic type Lathe CNC Controller , with 8.4 inches true color display(800x600) ,

CNC Controller Servos CNC Control System


SZGH-880Tc New launch CNC Controller Kit Up to 16-axis control For Lathe, Routers, High precision: 17bits/23-bit absolute encoder support is 3 Axis(X Z) economic type Lathe CNC Controller , with 8.4 inches true color display(800x600) ,
Send Inquiry

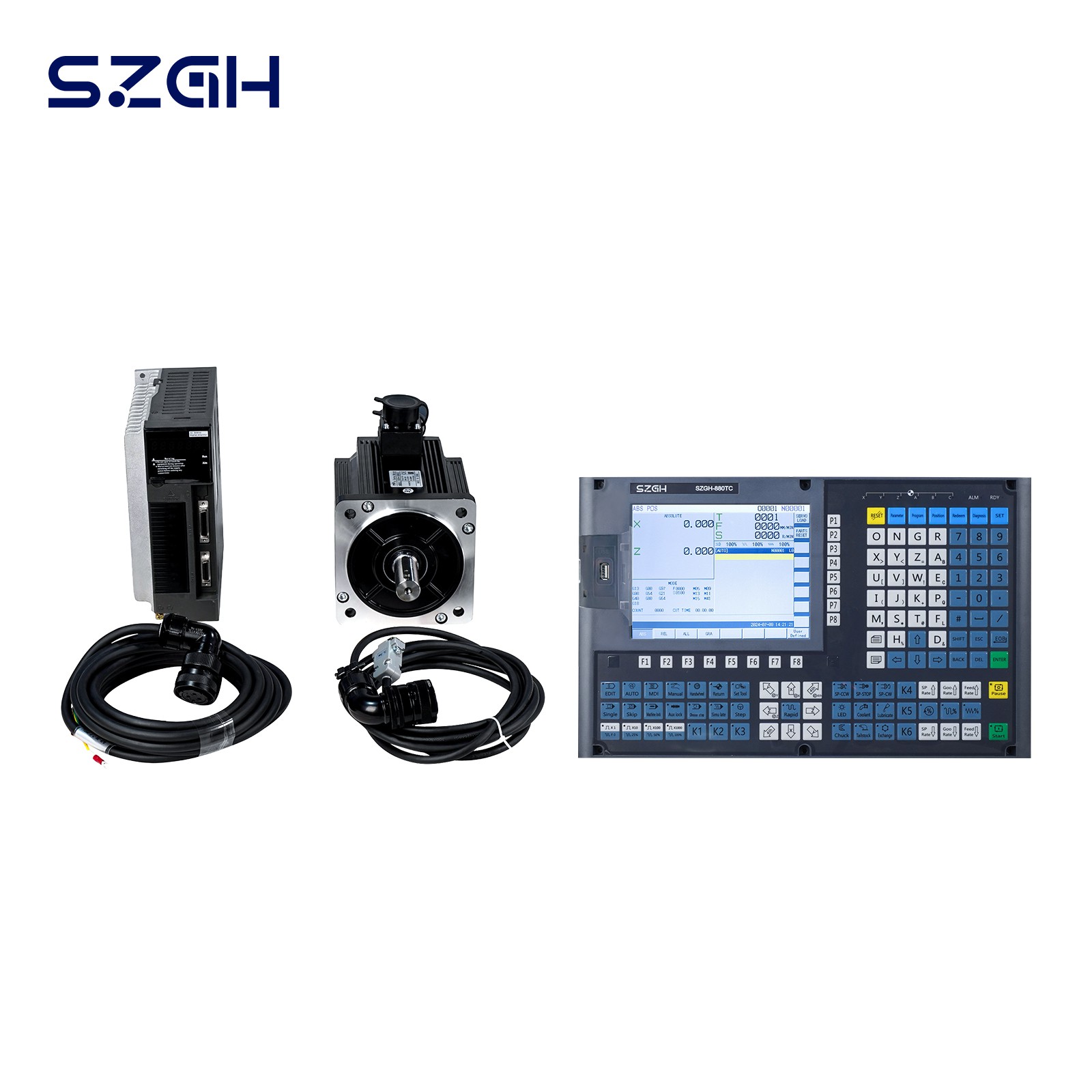

2/3/4 Axis SZGH 880TC CNC Controller Servos CNC Control System

SZGH-880Tc New launch CNC Controller Kit Up to 16-axis control For Lathe, Routers, High precision: 17bits/23-bit absolute encoder support is 3 Axis(X Z) economic type Lathe CNC Controller , with 8.4 inches true color display(800x600) ,
2 analog spindle ,2ms interpolation in high speed, support ATC, PLC and macro, dual spindle control support function.
which obviously maximize machining accuracy, improve the efficiency, precision and surface ,quality of parts processing.

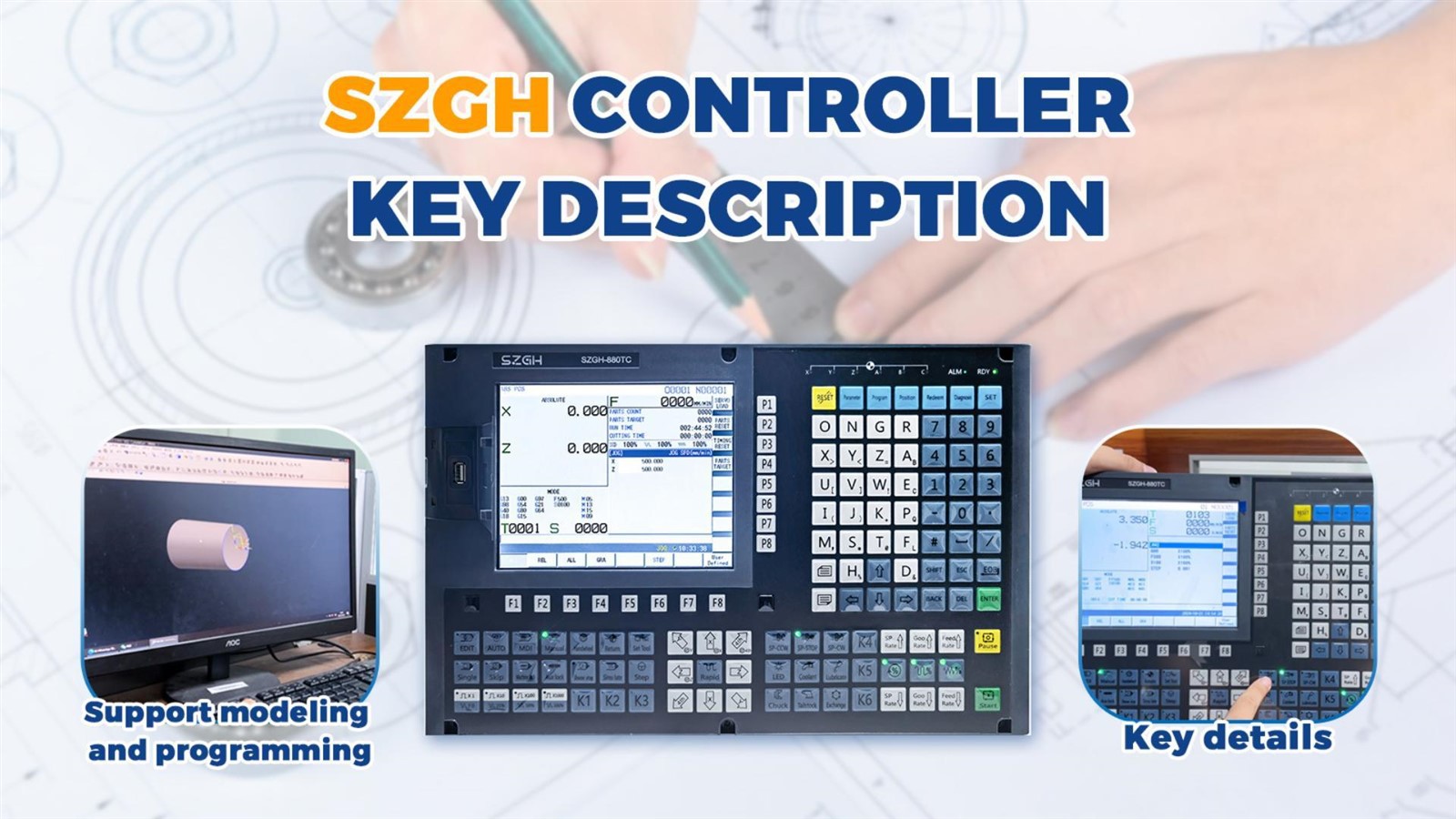

--CNC Controller Products function
1.Cortex-A8+Fpga platform, main frequency 1GHz, 0.5ms interpolation cycle, 0.1um control accuracy;
2. Linux operating system, USB and micro SD card interface support, realize mass program DNC processing;
3. Yaskawa M-II bus protocol, optional EthCAT bus protocol or pulse control;
4. Open built-in PLC, ladder diagram online editing display, signal diagnosis, signal tracking;
5. Real-time graphic display of machining tool trajectory, full diagnosis, alarm interface, real-time monitoring;
6.Class B macro instruction programming, macro program call with parameters support;
7.cSupport secondary development of display interface, can customize various macro variables;
8. C tool compensation, PMC axis interpolation, automatic chip breaking and various compound cycle functions support;
9. Support for various tool magazine types such as disc, bamboo hat, servo, etc.;

    Support grating ruler signal feedback function;
10. 2-way 0~10v analog voltage output, dual spindle control support;
11. Can turn various threads, thread tail length, thread cutting angle can be set;
12. Automatic chamfering function, automatic repeated feeding, conditional waiting and other special functions;

      Unlimited electronic gear function.
13. Open clock function, piece counting timing function, the use time permission can be set when the equipment leaves the factory;
14.Large program capacity: 240M bytes, 1000 processing programs storage support;

5



Send Inquiry

FAQ

The following are the common questions we have collected about CNC Machine.
1. Q: What industries and materials are your machine tools primarily suitable for?
+
A: Our extensive machine tool product line meets the needs of various industries, primarily automotive parts manufacturing, precision molds, and general hardware processing. Regarding materials, our machines can efficiently process a variety of steels, aluminum alloys, copper alloys, cast iron, as well as some engineering plastics and composite materials. The capabilities of individual models vary; please provide your specific processing requirements and we will recommend the most suitable model.
2. Q: What are the core advantages of your machine tools compared to similar products on the market?
+
A: Our core advantages are primarily reflected in three aspects: Peace of mind: For software, we have one-on-one service from technical engineers to help you quickly master our controllers. For hardware, our cast iron bodies are durable and long-lasting, and come with a one-year warranty, providing you with the ultimate assurance. Intelligence and ease of use: A wide range of optional accessories allows for customization, and supports automated loading and unloading interfaces, significantly improving production efficiency and the human-machine collaboration experience. Excellent value for money: Through vertically integrated supply chains and lean manufacturing, we offer competitive pricing and a faster return on investment while maintaining world-class quality.
3. Q: What kind of after-sales service and technical support do you provide after purchasing a machine tool?
+
A: We offer comprehensive after-sales support: Professional Training: Upon delivery, our engineers provide one-on-one operation, programming, and maintenance training. Warranty Policy: The entire machine comes with a 12-month warranty. Quick Response: We have a 24/7 online technical support hotline, promising remote support within 24 hours for any issues.
4. Q: What are the delivery time and logistics arrangements for the machine tools?
+
A: For standard models, we typically have them in stock or have a short delivery time of less than 15 business days. Customized models have a delivery time of approximately 45 days, depending on the configuration requirements. After placing an order, our project manager will follow up every step of the way. We provide professional wooden crating and rust-proofing, and work with reliable logistics partners to ensure the equipment arrives safely and on time at your address.
5. Q: If I require a customized solution, can you provide support?
+
A: Of course! Customization is one of our core capabilities. Our team of dedicated application engineers can customize your workpiece, production line layout, and automation needs. This includes, but is not limited to, specialized fixtures, expanded tool magazine capacity, integrated robotic interfaces, and the creation of complete flexible manufacturing cells. Feel free to contact our technical sales team to discuss your needs.
