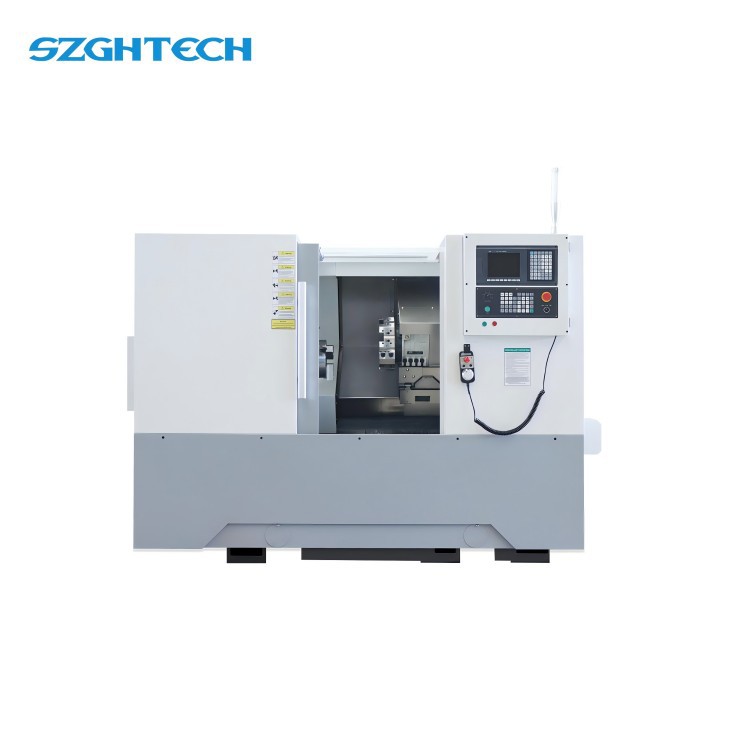

The TK50 series is a simple CNC lathe driven by a servo main motor. It has an independent spindle structure and can achieve infinite spindle speed changes. Equipped with a Guangzhou CNC system to achieve two-axis control, it can automatically complete the processing of internal and external cylindrical surfaces, arbitrary conical surfaces, arc surfaces, end faces, and metric and inch threads of parts. It is suitable for shafts and disc sleeves of multiple varieties and small and medium-volume products. Parts Processing. TK50 series: uses hardened guide rails. TK50C series: adopts linear rolling guide rail. TK50F series: Special lathes developed for brake pad processing.

Cnc Lathe Machine The Importance Of


The TK50 series is a simple CNC lathe driven by a servo main motor. It has an independent spindle structure and can achieve infinite spindle speed changes. Equipped with a Guangzhou CNC system to achieve two-axis control, it can automatically complete the processing of internal and external cylindrical surfaces, arbitrary conical surfaces, arc surfaces, end faces, and metric and inch threads of parts. It is suitable for shafts and disc sleeves of multiple varieties and small and medium-volume products. Parts Processing. TK50 series: uses hardened guide rails. TK50C series: adopts linear rolling guide rail. TK50F series: Special lathes developed for brake pad processing.
Send Inquiry

cnc lathe machine the importance of

The TK50 series is a simple CNC lathe driven by a servo main motor. It has an independent spindle structure and can achieve infinite spindle speed changes. Equipped with a Guangzhou CNC system to achieve two-axis control, it can automatically complete the processing of internal and external cylindrical surfaces, arbitrary conical surfaces, arc surfaces, end faces, and metric and inch threads of parts. It is suitable for shafts and disc sleeves of multiple varieties and small and medium-volume products. Parts Processing.
TK50 series: uses hardened guide rails.
TK50C series: adopts linear rolling guide rail.
TK50F series: Special lathes developed for brake pad processing.

11

After-sales Service: One Year Warranty
Warranty: 13 Months
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Semi-Closed Loop Control

31

Product main technical parameters:

1. 45 degrees slant bed CNC lathe machine.
2. Higher accuracy Taiwan linear guide.
3. Chip conveying capacity is large and convenient, customer could choose.
4. Chip conveying in the front or in the back.
5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure.
6. Gang type tool post.
7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses.
9. Machine with full protection design,waterproof debris reliable, easy maintenance.

61

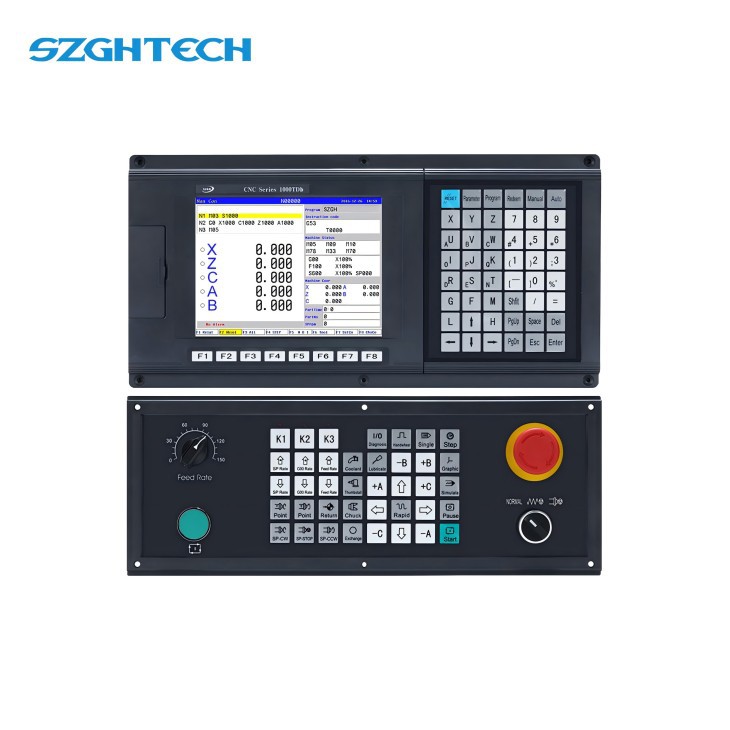

  FEATURES OF MATCHED CNC CONTROLLER

  ( 1.)2-5 Axis Fully English Type CNC lathe controller;

  (2.)800x600 8.4 inch real color LCD displayer;

  (3.)Electric Turret & Binary code turret,Max: 99 pcs tools;

  (4.)Support ATC, Macro function and PLC function;

  (5.)Max speed is 60m/min, feeding speed is 24m/min;

  (6.)Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;

  (7.)High anti-jammingswitch power(100V-240VAC 50Hz/60Hz→ 24VDC);
  (8.)64MB Memory ,56M user store room;

  (9.)With USB interface it supports file operation in flash disk,system confiquration and software upgrade

 (10.)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10

 (11.)32 bits ARM microprocessor+FPGATechnology;

 (12)Basic 1/0:36X36, can be edited freely;
 (13)Cutter offset :
